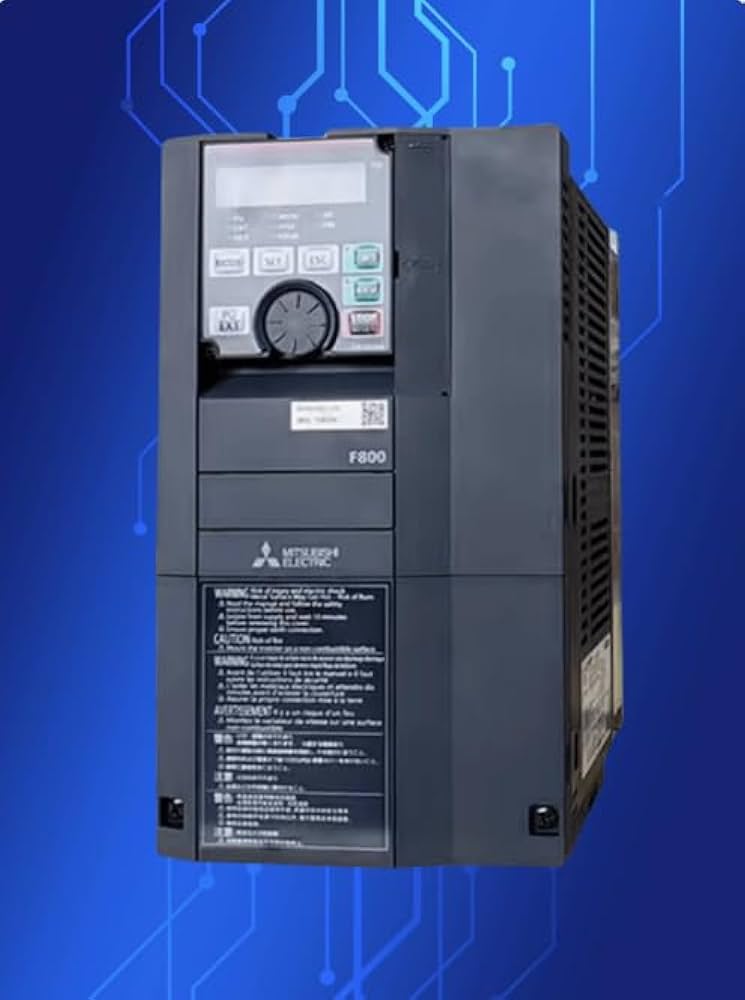

| Manufacturer |
Mitsubishi |
| Part Number |
FR-F840-00023-2-60 |
| Series |
FR-F800 SERIES |
| Type |
FR-F800-E INVERTER |
| Minimum Rated Voltage (V) |
380 |
| Min. Permissible Voltage (V) |
323 |
| Maximum Rated Voltage (V) |
500 |
| Max. Permissible Voltage (V) |
550 |
| Current Type |
AC |
| Phases |
3 |
| Rated Output Current SLD (A) |
2,3 |
| Rated Output Current LD (A) |
2,1 |
| Rated Motor Capacity SLD (kW) |
0,75 |
| Rated Motor Capacity LD (kW) |
0,75 |
| Frequency Range (Hz) |
0,2–590 |
| Control Method |
V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type |
INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter |
YES |
| PLC Function |
YES |
| Program Memory |
6K |
| Program Memory Unit |
STEPS |
| Integrated Digital Inputs |
12 |
| Digital Outputs (Transistor) |
5 |
| Digital Outputs (Relay) |
2 |
| Integrated Analogue Inputs |
3 |
| Integrated Analogue Outputs |
2 |
| IO Type of Terminal Block |
SPRING CLAMP |
| Expandable |
YES |
| USB |
1+1 MINI |
| Ethernet Port |
1 |
| Built-In Network |
CC-LINK IE FIELD NETWORK BASIC, MELSOFT/FA, iQSS, MODBUS/TCP, SLMP, BACNET/IP |
| Leakage Current (mA) |
35(DELTA) / 2(STAR) |
| Power Loss SLD (W) |
55 |
| Power Loss LD (W) |
50 |
| Standby Power Consumption (W) |
19 |
| Protection Class |
IP20 |
